TURBO PiX

Easier Flight & Safer Fun

Same Functions as PIXHAWK

Vibration Damping by Software

More Channels for Multicopters

Overall Obstacle Avoidance with 6

modules connected

Vibration Damping by Software, Altitude and Posture Hold

Specially developed by RADILINK team, Turbo Pix keeps the complete PIXHAWK functions but resolves its Alt-Hold uncontrollability problem at high speed. With the software optimization, Turbo Pix achieves better vibration damping and diminishes the posture deviation. Combination of Inertial navigation and barometer decreases airflow influences and ensures better stability even when speed up.

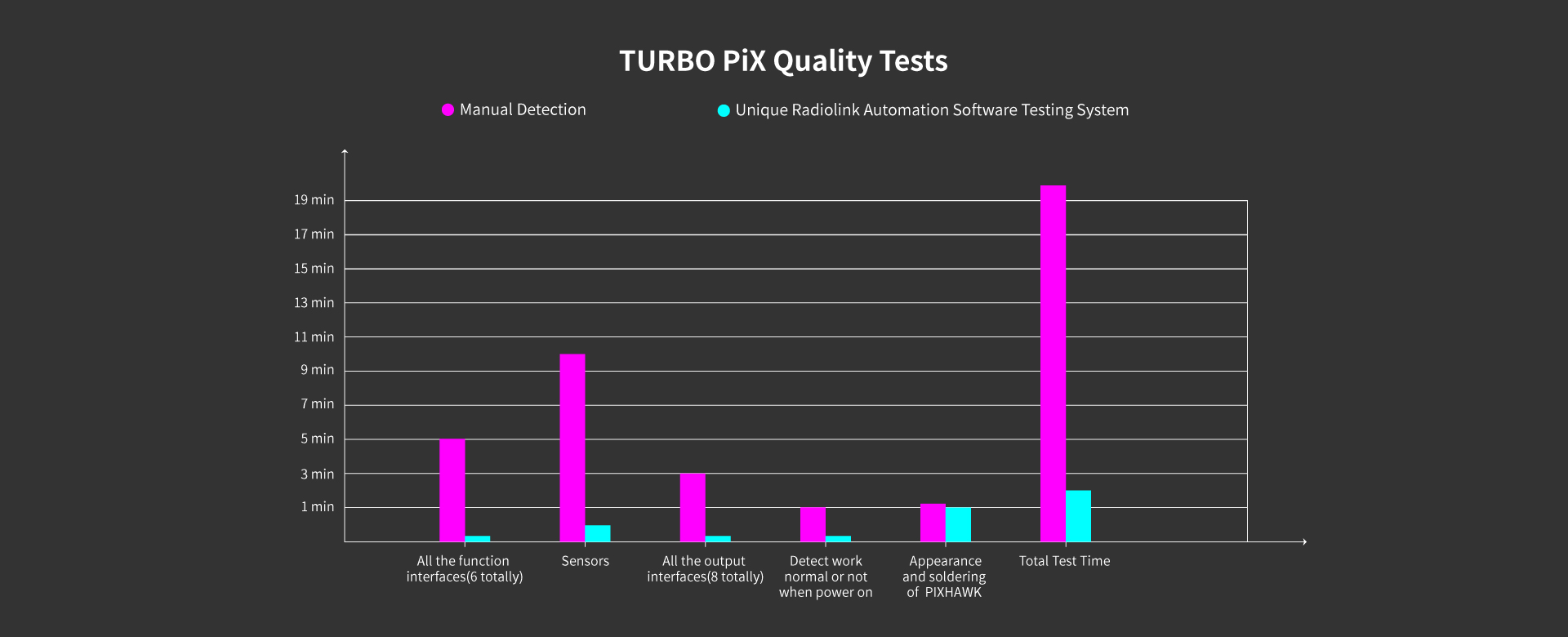

Quality Assurance

Radiolink took about six months to develop the Automation Software Testing System, ensure the quality of every function of every Mini Pix.

As the only PIX manufacturer that realizes test automation from the sensor to the interface, testing efficiency of Radiolink is far more than traditional manual testing.

More Channels, All Multicopters Possible

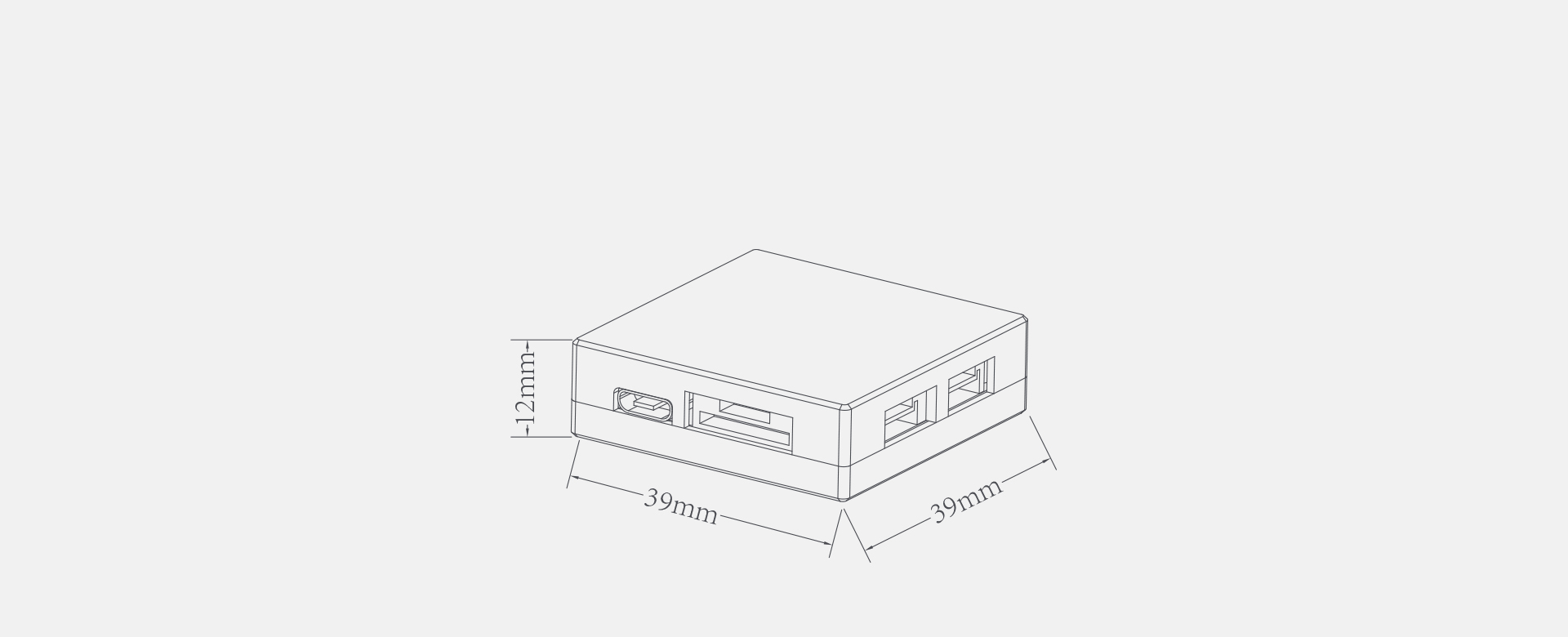

With the dimension of 39*39*12mm (1.54"*1.54"*0.47") and the weight of 39g(1.28oz) including cables, TURBO PIX lightens the whole weight of the aircraft and diminishes battery consumption, allowing longer flight time. The 8- channel output fits all models including fixed-wing/helicopter/car/boat/3-8 copters.

Work with SUI04, Overall Synchronous Obstacle Avoidance

The Transfer Board* packed extends the I2C port quantity of MINI PIX as TWO. The two I2C ports can be used to connect corresponding I2C modules such as one ultrasonic sensor SU04* to achieve altitude holding and an LED module.

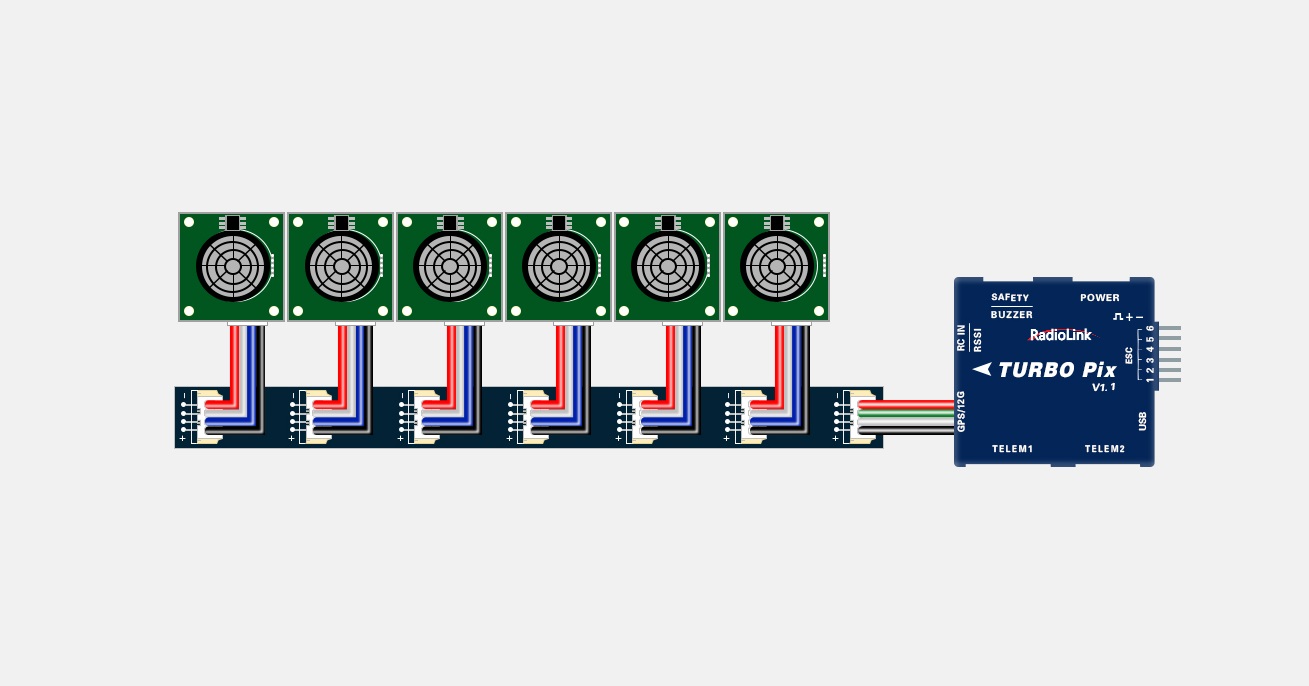

Or with the optional expansion board, maximum 6 ultrasonic sensors SUI04 can be connected to make aircraft avoid obstacles from 5 directions (forward/backward/left/right/upward) and altitude hold downward.

* I2C Transfer Board：Standard accessory packed with MINIPIX/TURBOPIX.

* I2C Expansion Board：I2C port of flight controller can be extended to maximum six.

I2C Expansion Board

Easy to Install and Setup, Ready to Fly

With the default PID parameters for racing drones/agriculture drone/helicopter ready to download, TURBO PIX is easy to fly, especially for novices. It is capable of sensing the sudden throttle push and brakes then immediately reacts to avoid collision and falling, meanwhile, it detects obstacles in real time to protects both aircraft and pilots regardless of the possible misjudgments.

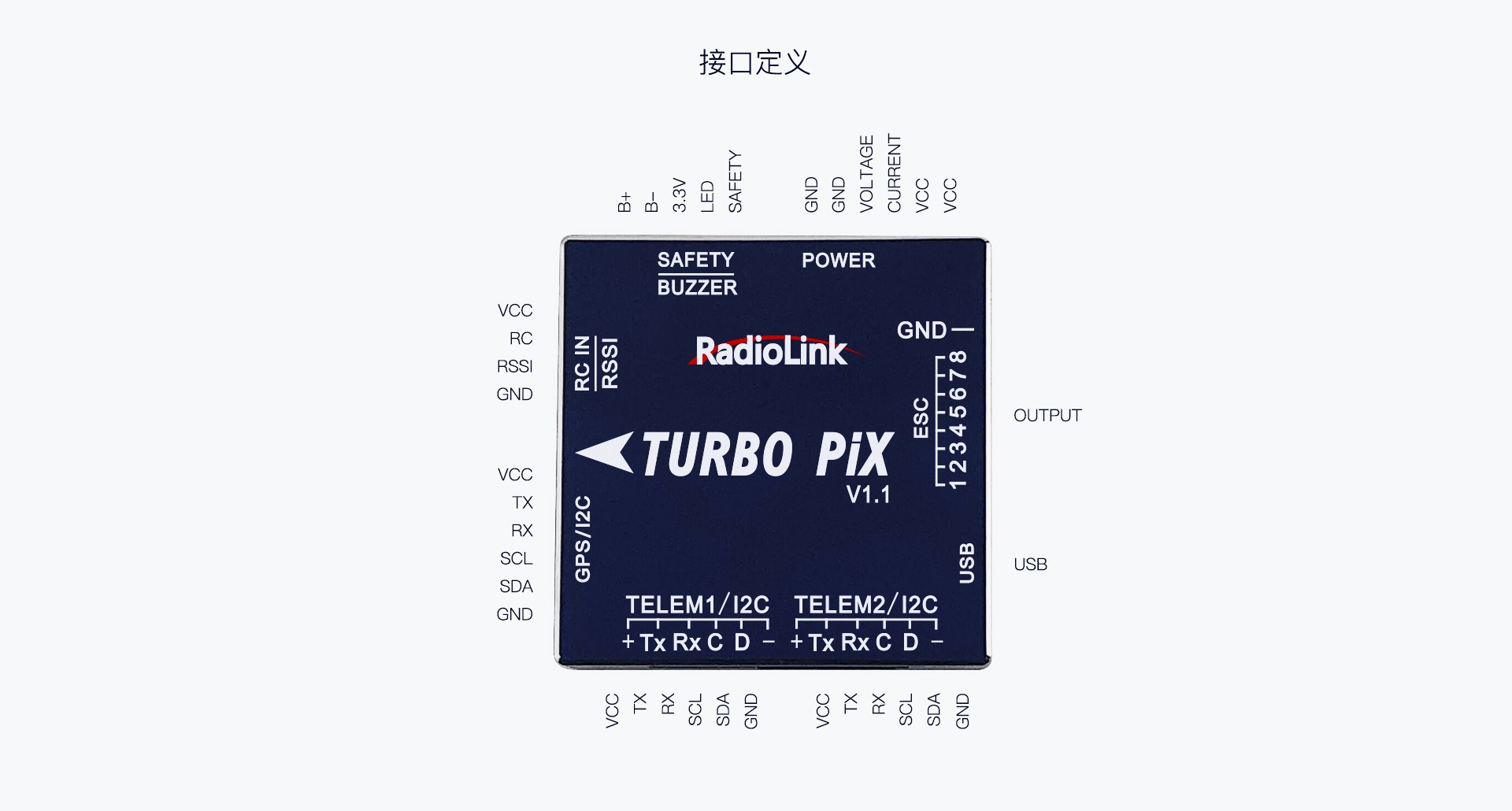

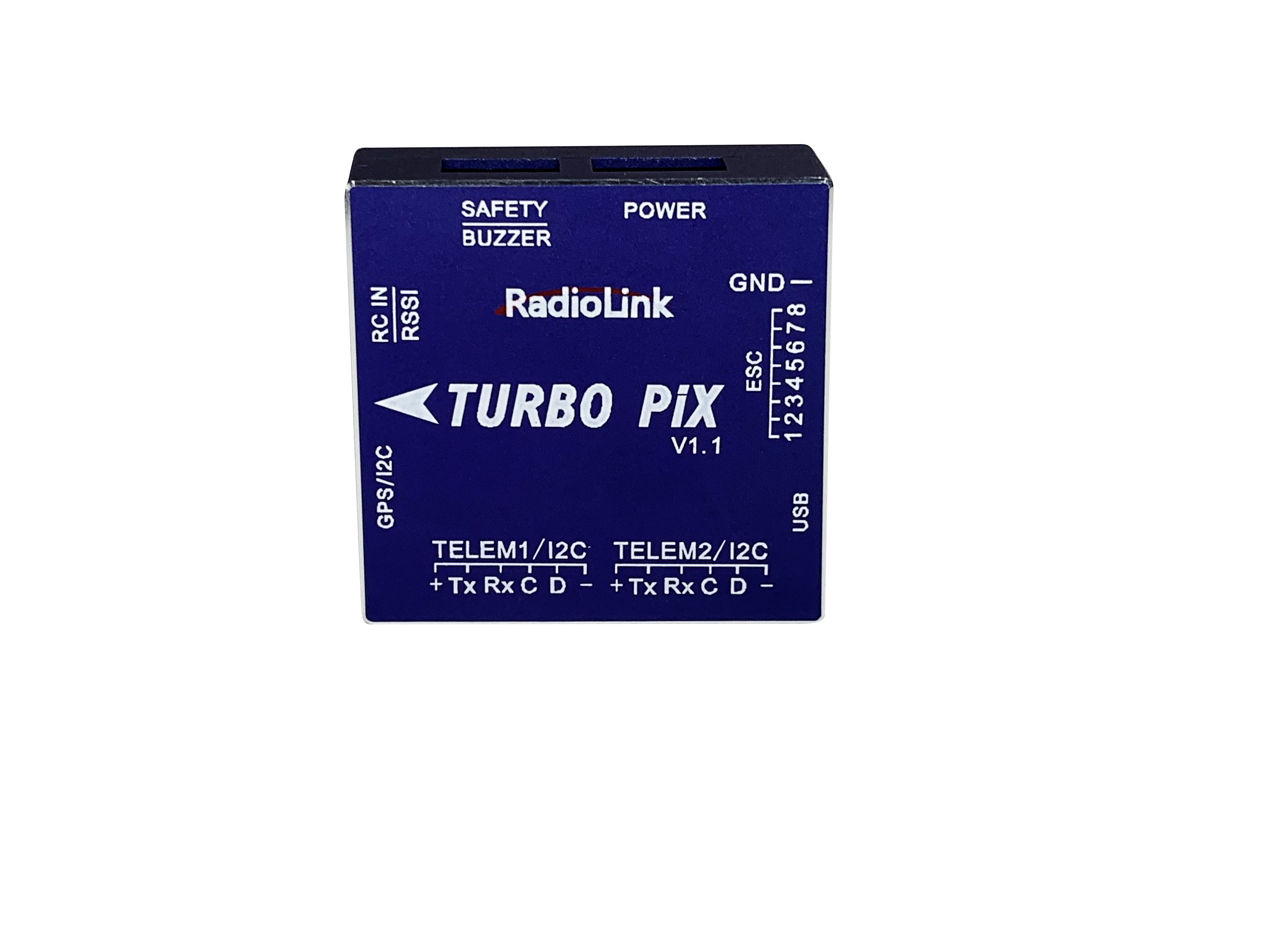

TURBO PiX Ports

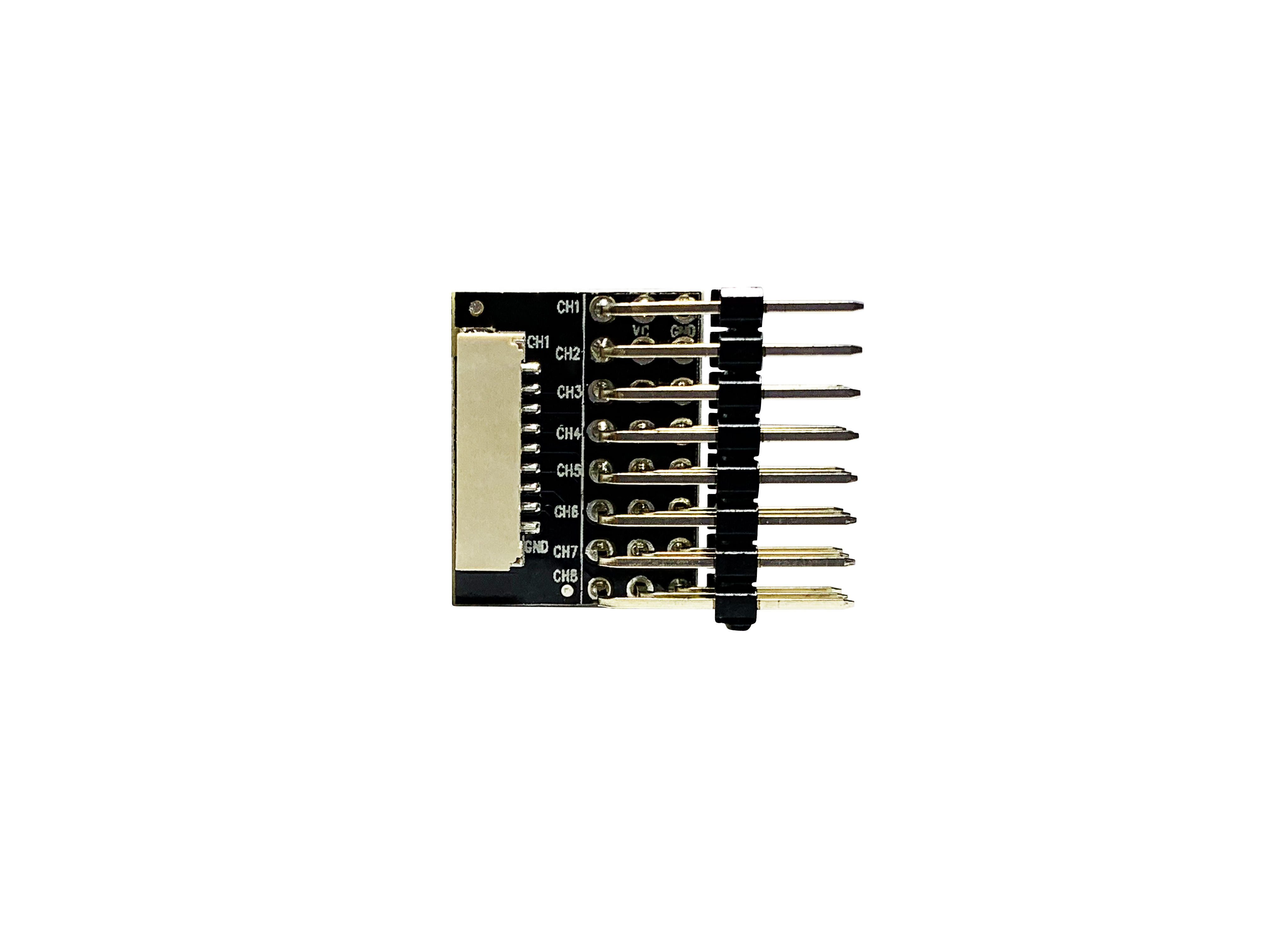

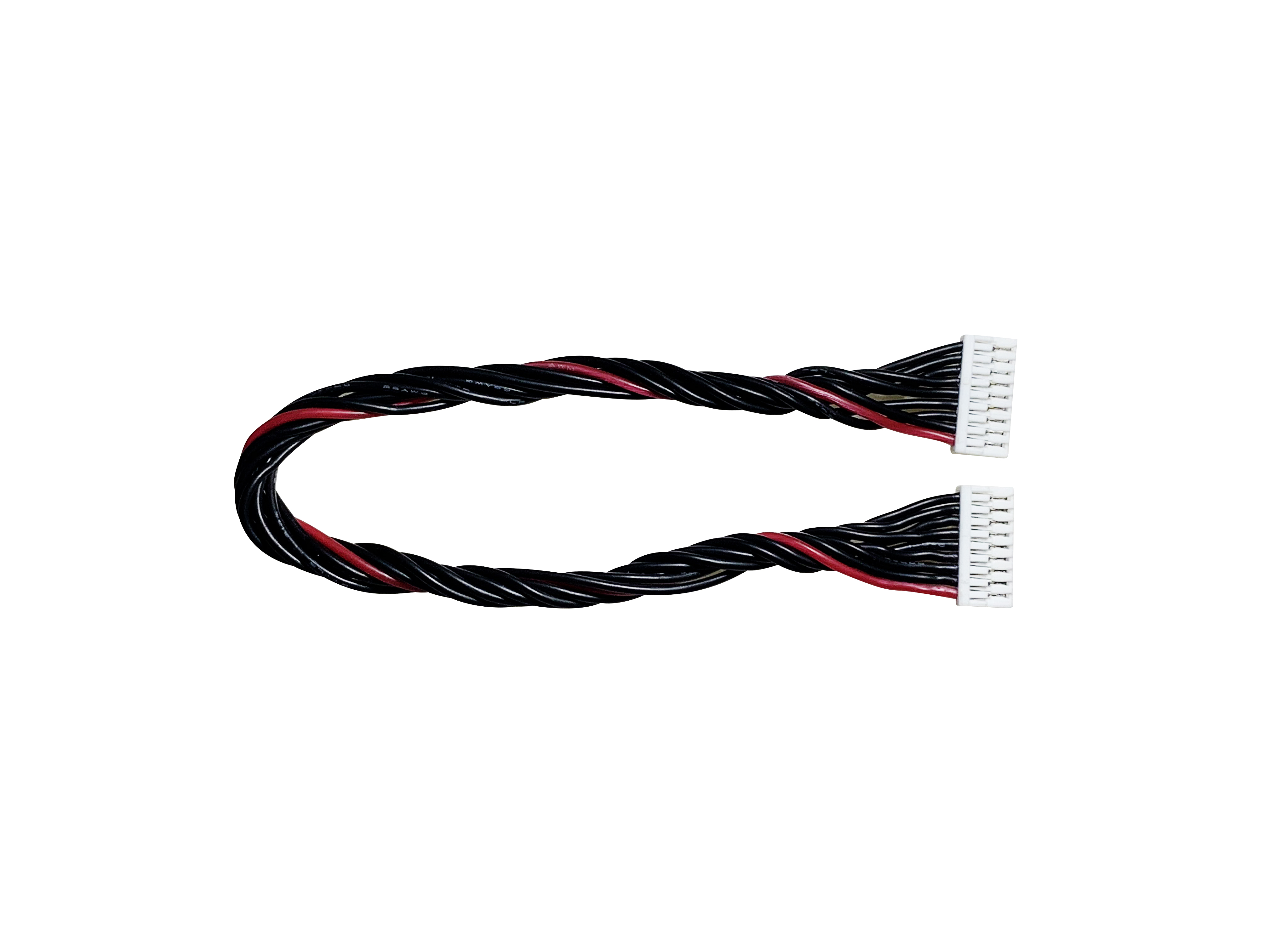

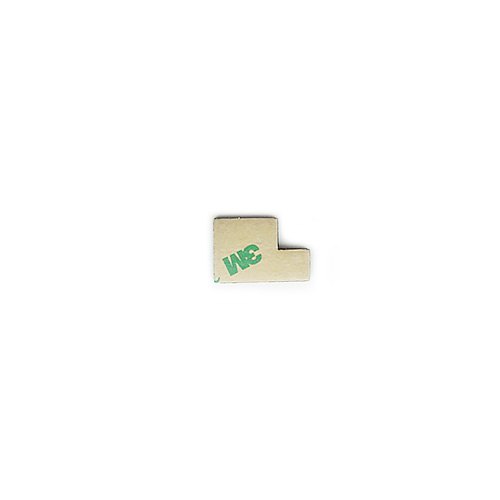

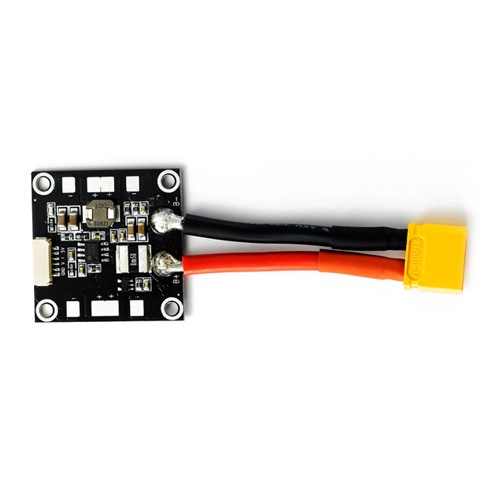

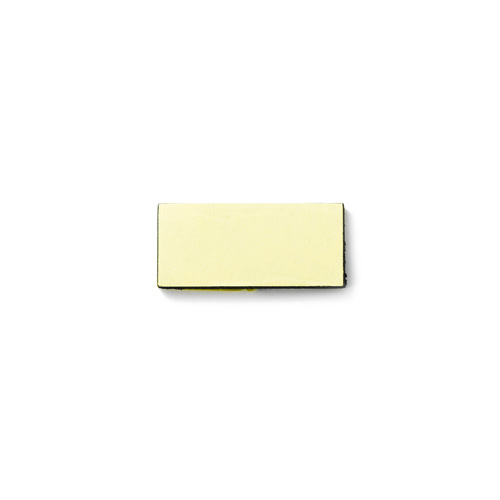

Package List for TURBO PiX
